Reliable Real-Time Monitoring for Critical Infrastructure
Industrial-grade monitoring station for real-time proximity and position detection in harsh outdoor environments. Supports mobile network alerts via web interface, Telegram, and optional SMS & WhatsApp. Built with a rugged IP65 metal enclosure and replaceable battery design for up to 10 years operation, making it suitable for long-term infrastructure and asset protection.
Common Problems Solved

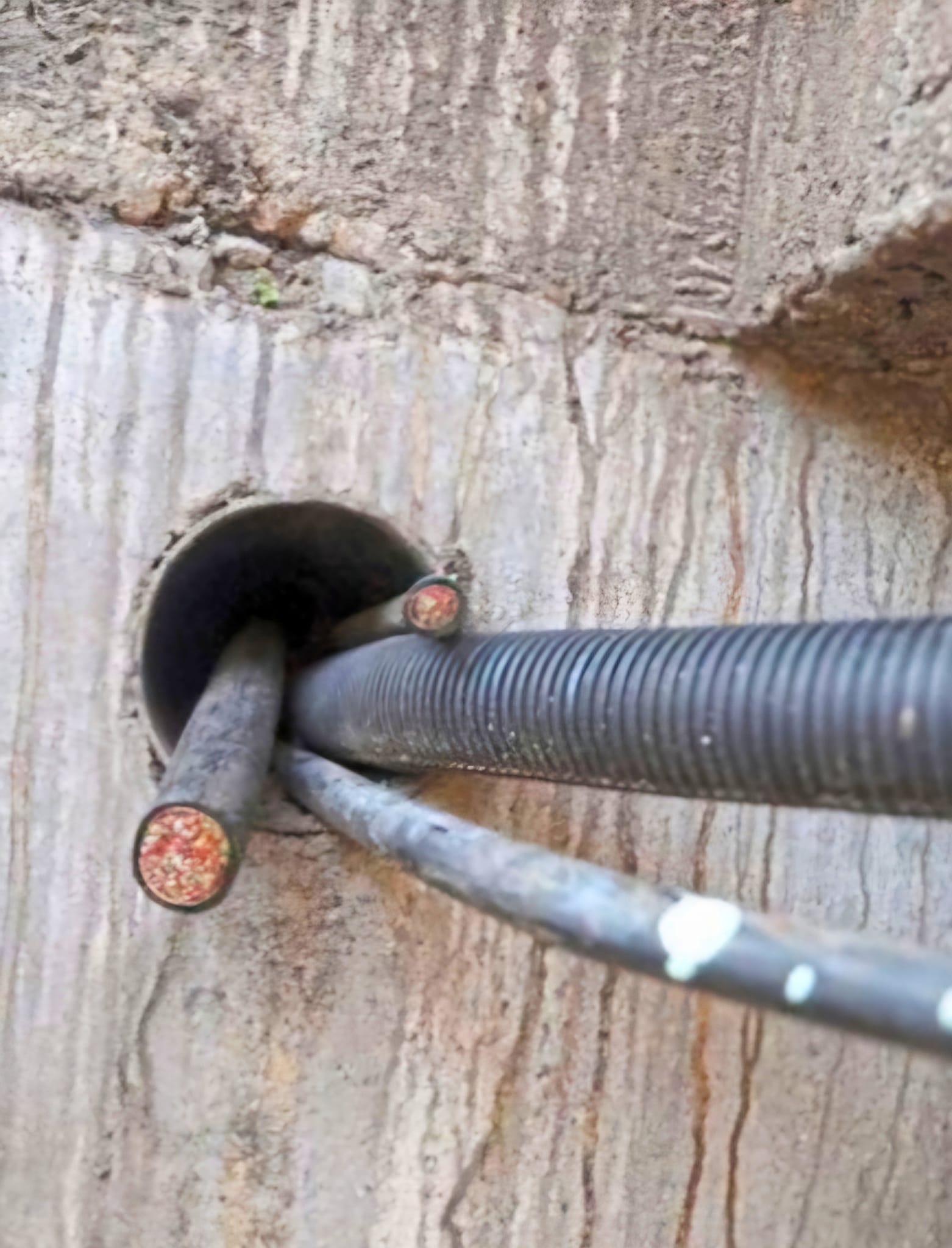

- Unauthorized opening or intrusion
- Flooding or rising water level
- Difficult manual inspection
- Delayed maintenance response
- No real-time alerts
Specifications
Product Type

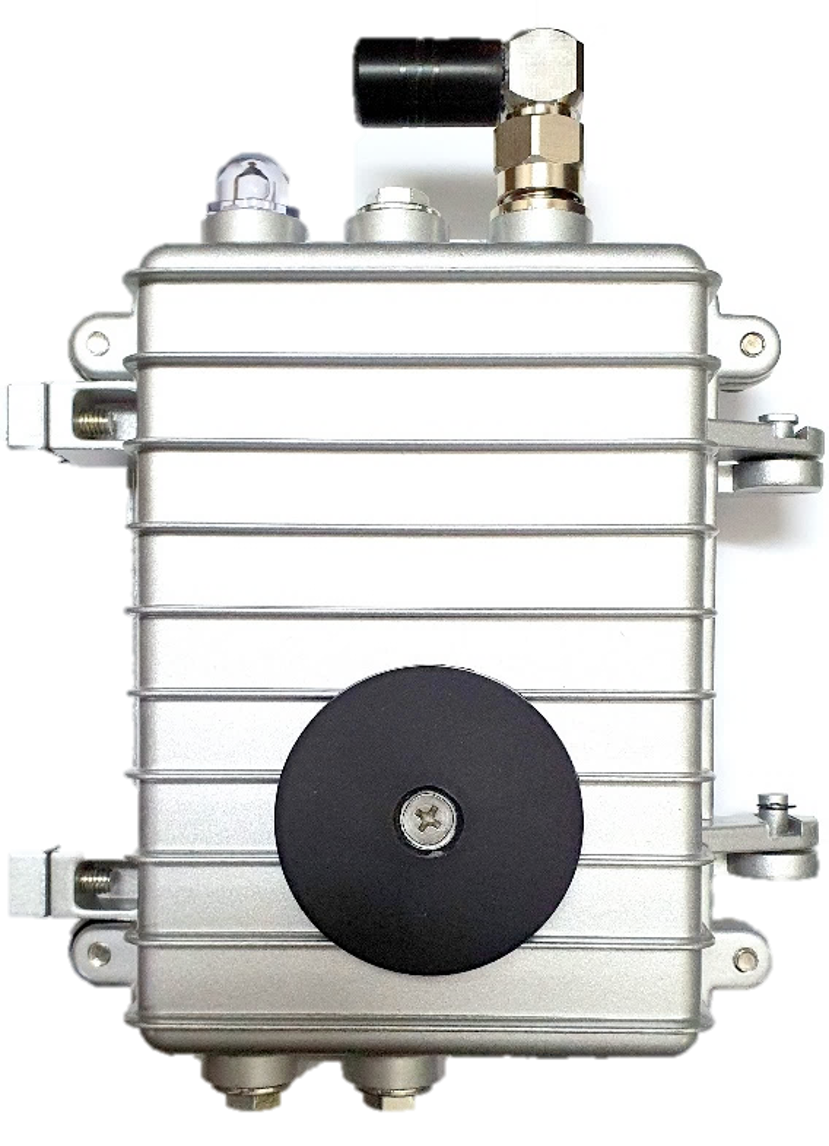

Smart Monitoring Station (Pro-X Series)
Sensing Method
Port A: 2× NO/NC Contact Sensors (Spring / Position / Vibration/ Switches)
Port B: Water Level / Distance Sensing (up to 40M)
Communication
Mobile Network (Global SIM card provided)
Alarm Message
Web Interface, Telegram, SMS / WhatsApp (optional)
Status Indicator
Pulsing LED
- Red when triggered; green when normal
Other Features
Sensor noise and vibration filtering to reduce false alarms
Power Supply
7.2V / 19000mAh Lithium Battery (Replaceable)
- Standby Current: ~12uA
- Data transmission (Alert / Status): 3–5mWh
-
Estimated for 10-year usage: about 6–10 transmissions per day
(with 10% battery degradation included, based on 12uA standby and 3–5mWh per transmission)
Tamper-Resistant Design
IP65 metal case with epoxy-encapsulated battery and control board
Dimensions / Weight
H190 × W150 × D80 mm / ~1.2kg
Mounting
2× Screw Holes
Supported Sensors
Supports multiple sensor options for contact status, position, vibration, water level, and distance monitoring. Other similar sensor types may also be supported based on project needs. Please check with us for compatible sensor options.

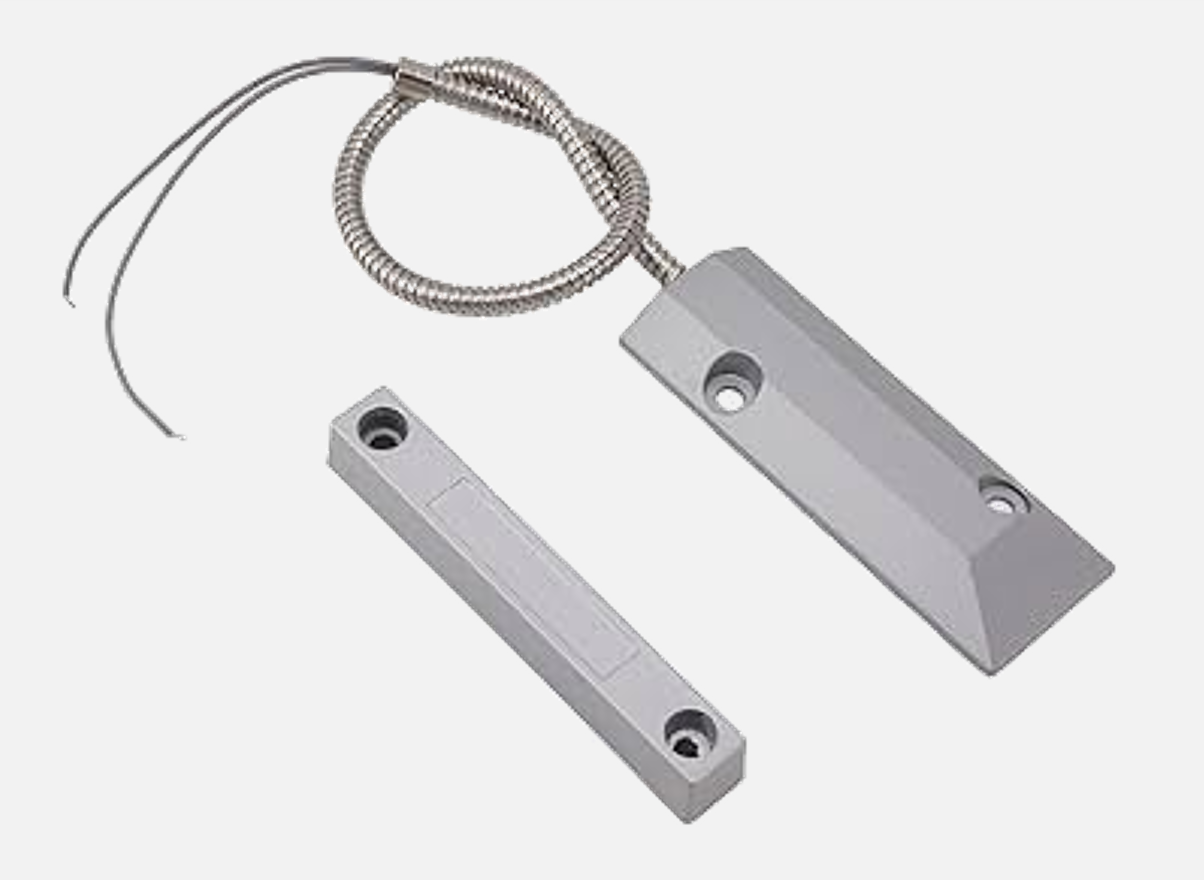

Magnetic Contact

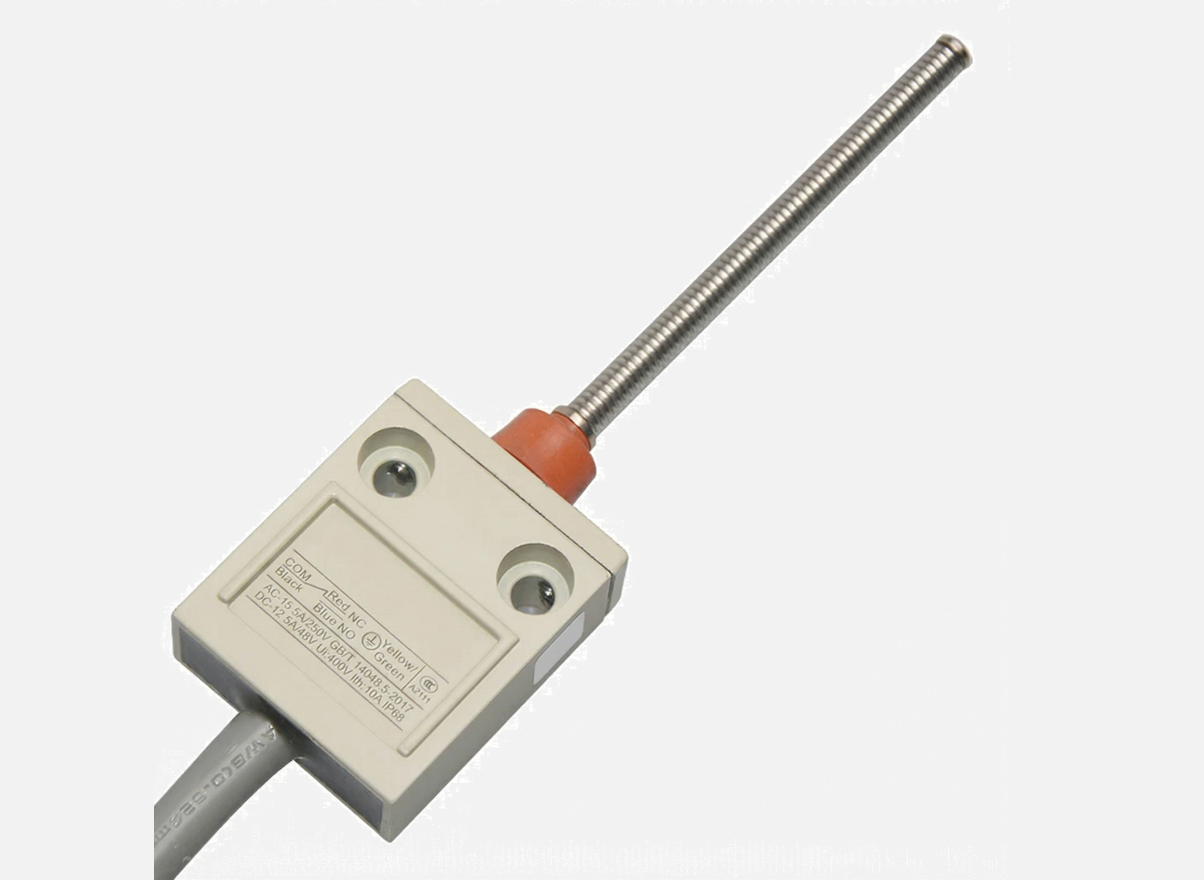

Spring Limit Switch

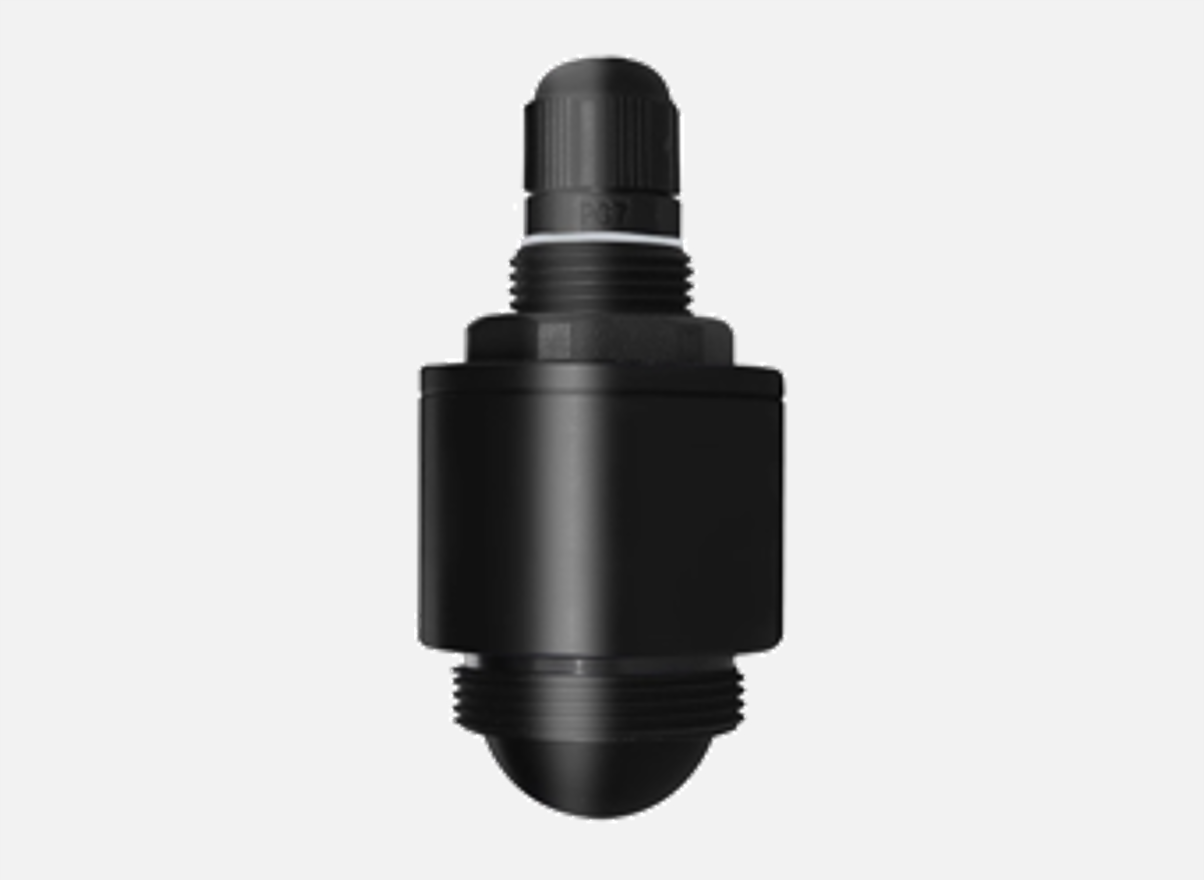

Distance Sensor

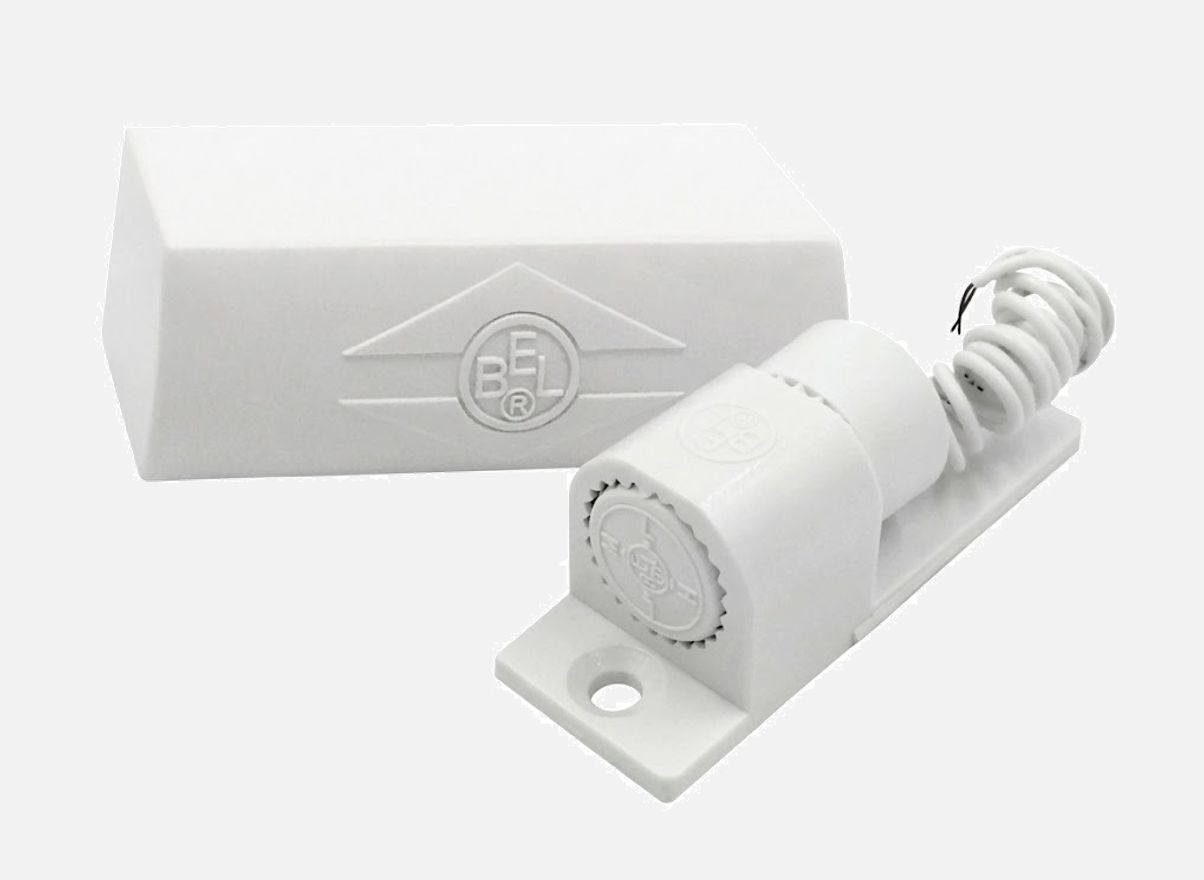

Vibration Sensor

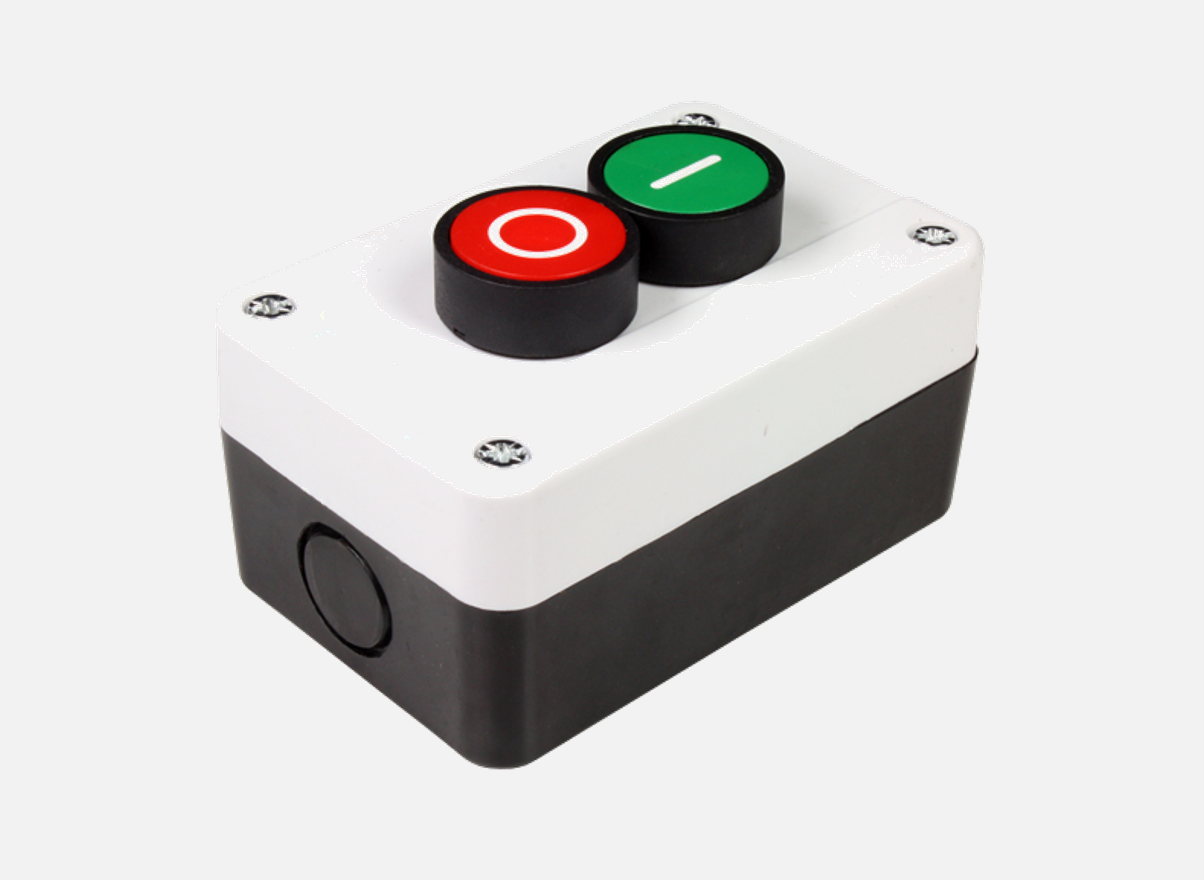

On/Off Switches

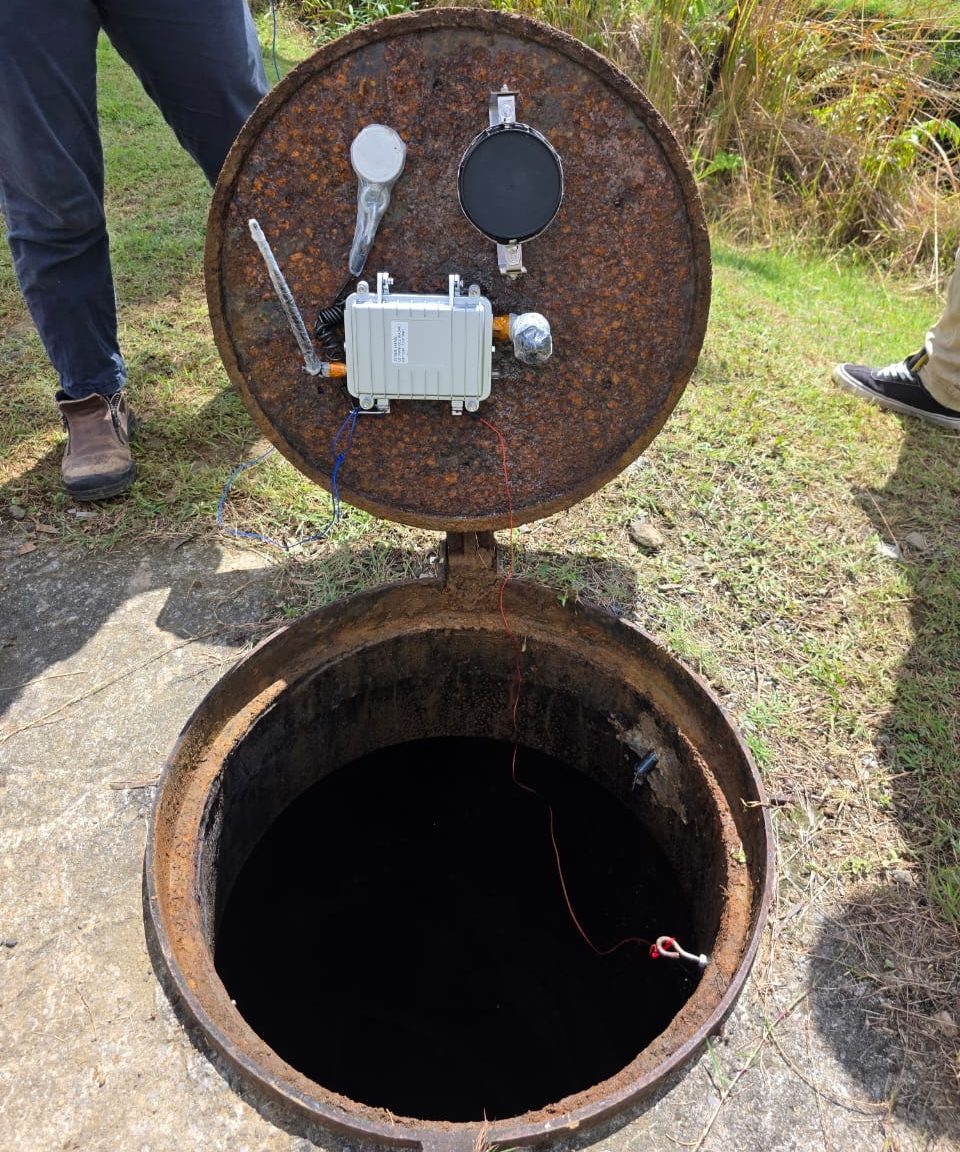

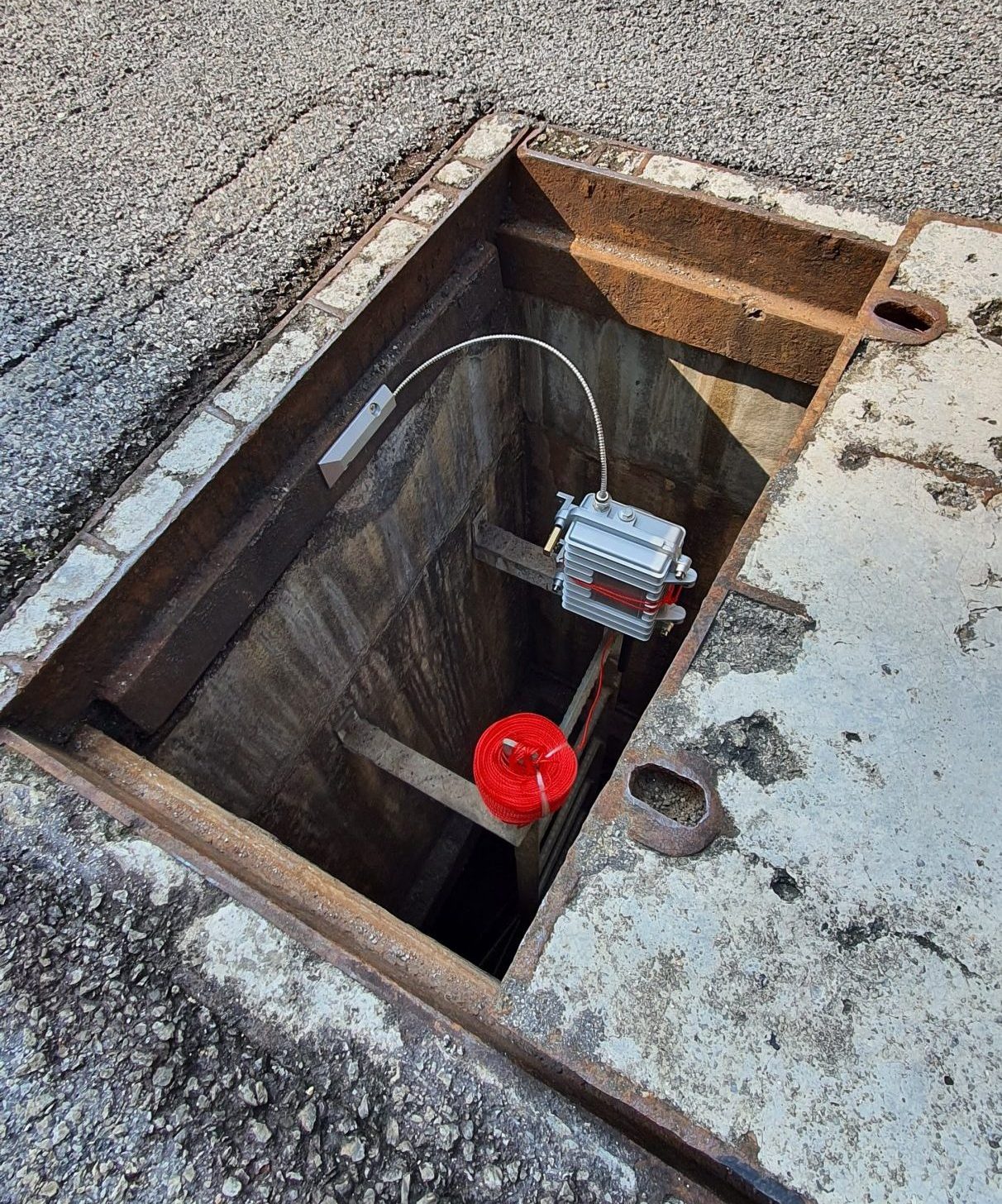

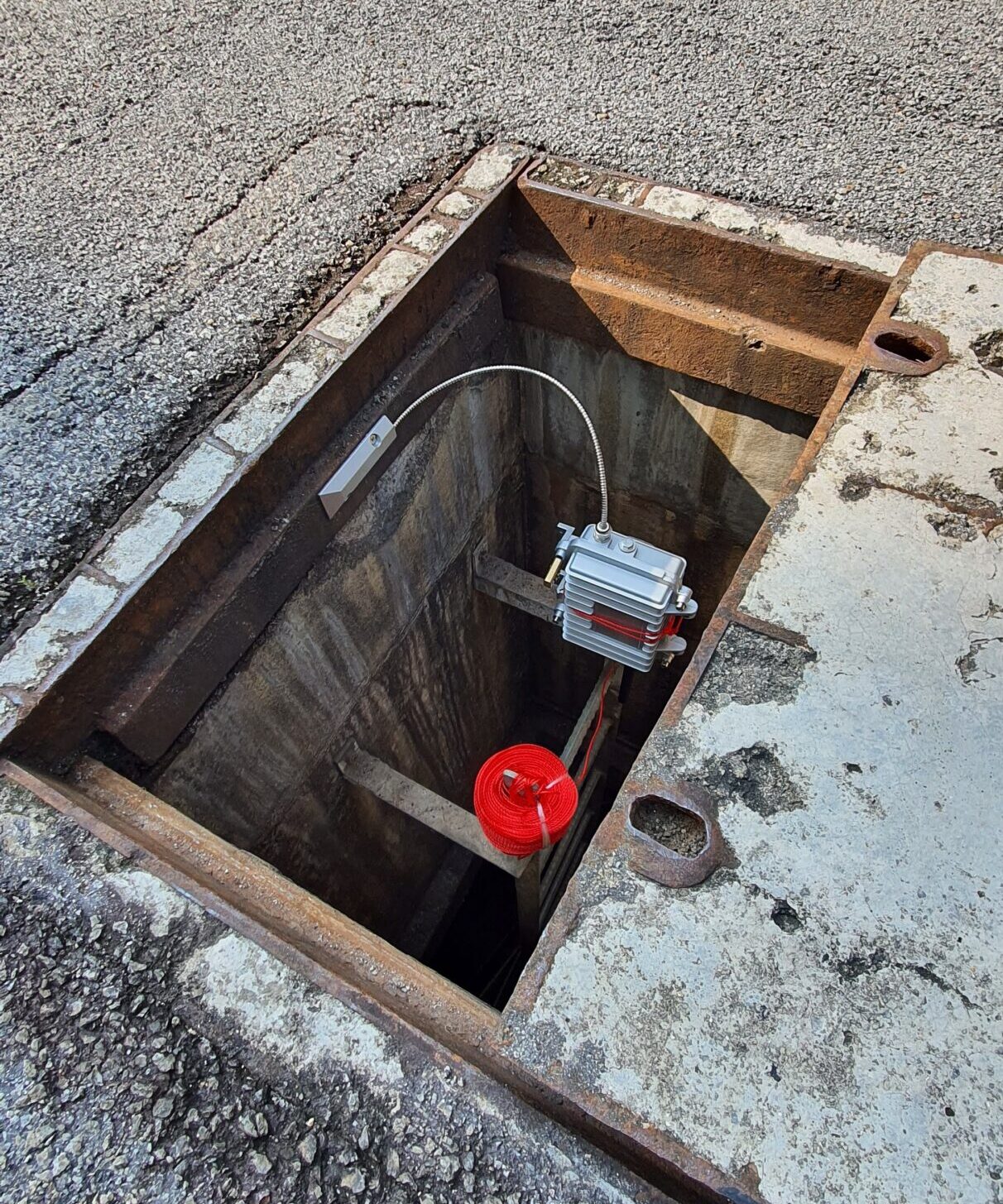

Onsite Deployment
Designed for real-world installation in manholes, utility chambers, and infrastructure sites, with practical mounting for reliable monitoring in harsh outdoor environments.
